• Half-duplex low-speed products, 3.3V and 5V power supply, support 0-115Kbps, 500Kbps transmission rates

• The first full-duplex product, 5V power supply, transmission rate up to 16Mbps

RS-485 is a common serial communication standard, widely used in industrial control systems, automation equipment, instrumentation

and other fields of data communication.

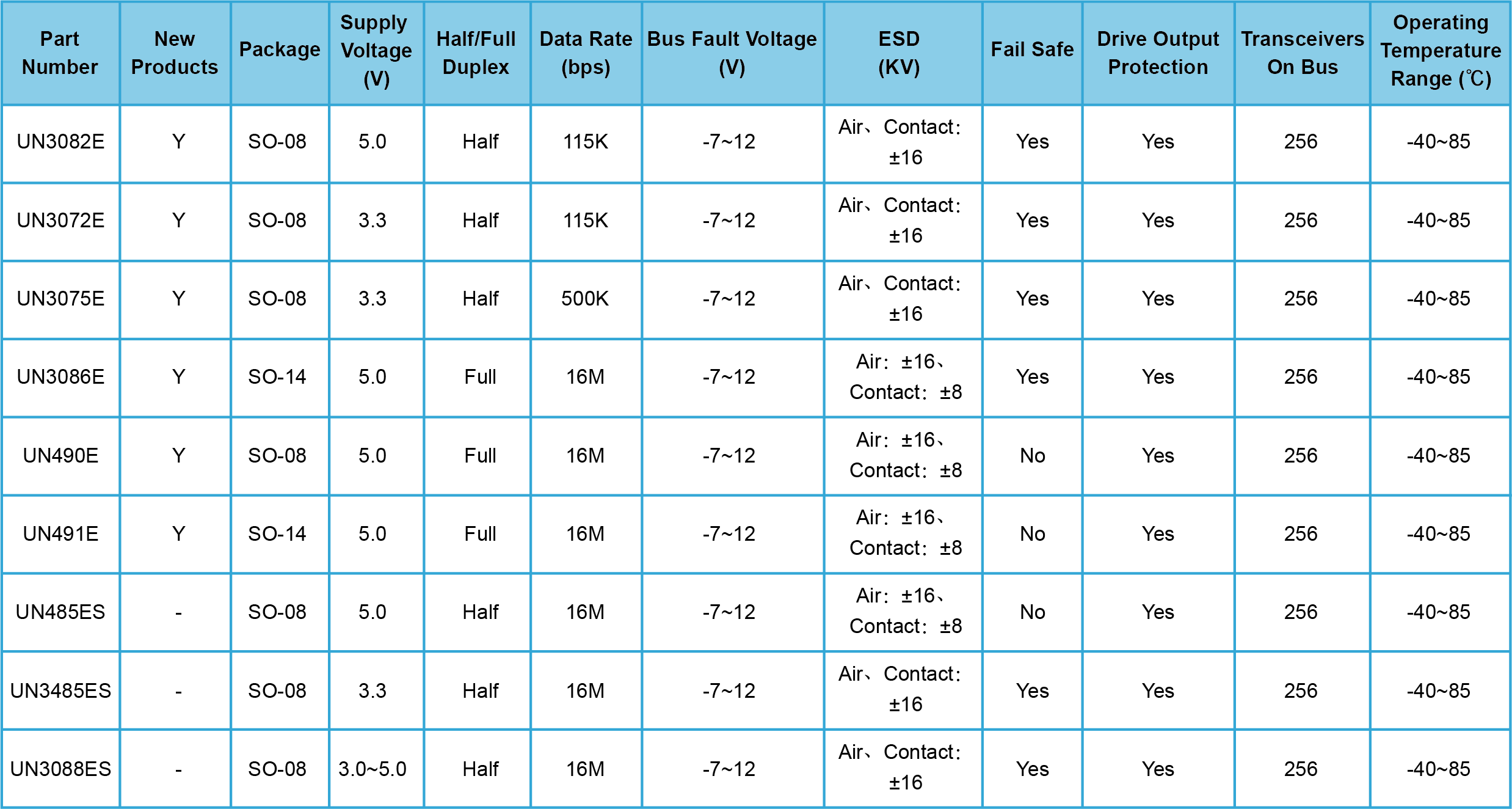

1、RS-485 chip specification sheet

2、New product features

• UN3082E half-duplex product, 5V power supply, support 0-115Kbps low-rate transmission, integrated ESD static protection, failure protection,

  overtemperature protection, low power shutdown and hot swap functions.

• UN3072E half duplex, 3.3V power supply, support 0-115Kbps low rate transmission, integrated ESD static protection, failure protection,

  overtemperature protection, with low power shutdown and hot swap functions.

• UN3075E half-duplex product, 3.3V power supply, 500Kbps transmission rate, integrated ESD static protection, failure protection,

  overtemperature protection, with low power shutdown and hot swap functions.

• UN3086E full dual product, 5V power supply, transmission rate up to 16Mbps, integrated ESD electrostatic protection, failure protection,

  overtemperature protection, low power shutdown and hot swap functions.

• UN490E full-duplex product, 5V power supply, transmission rate up to 16Mbps, integrated ESD electrostatic protection,

  overtemperature protection, hot swap function.

• UN491E full-duplex product, 5V power supply, transmission rate up to 16Mbps, integrated ESD electrostatic protection,

  overtemperature protection, low-power shutdown and hot swap functions.

3、Application

• Industrial control: In industrial automation systems, RS-485 interface chips are widely used in data acquisition,

  equipment monitoring and remote control and other fields.

• Power communication: In the power system, it is used for the communication network construction of substations,

  power plants and other places to achieve remote monitoring and data transmission.

• Smart home: In the smart home system, as a communication bridge between smart devices, to achieve the

  interconnection between devices.

• Communication industry: provides high-speed and stable data transmission solutions in communication base

  stations, data transmission equipment and other scenarios.

• Automotive electronics: often used in vehicle control systems, battery management systems, vehicle diagnostic systems, etc.

4、Summary

         RS-485 serial chip currently has half duplex and full duplex products, transmission rate from low speed 115Kbps to high

speed 16Mbps, support 3.3V and 5V power supply, and have up to ±16kV ESD protection ability and excellent resistance to

common mode interference ability, chip in no-load or full load state, very low power consumption.

For technical details and sales or technical support, please feel free to contactus.
