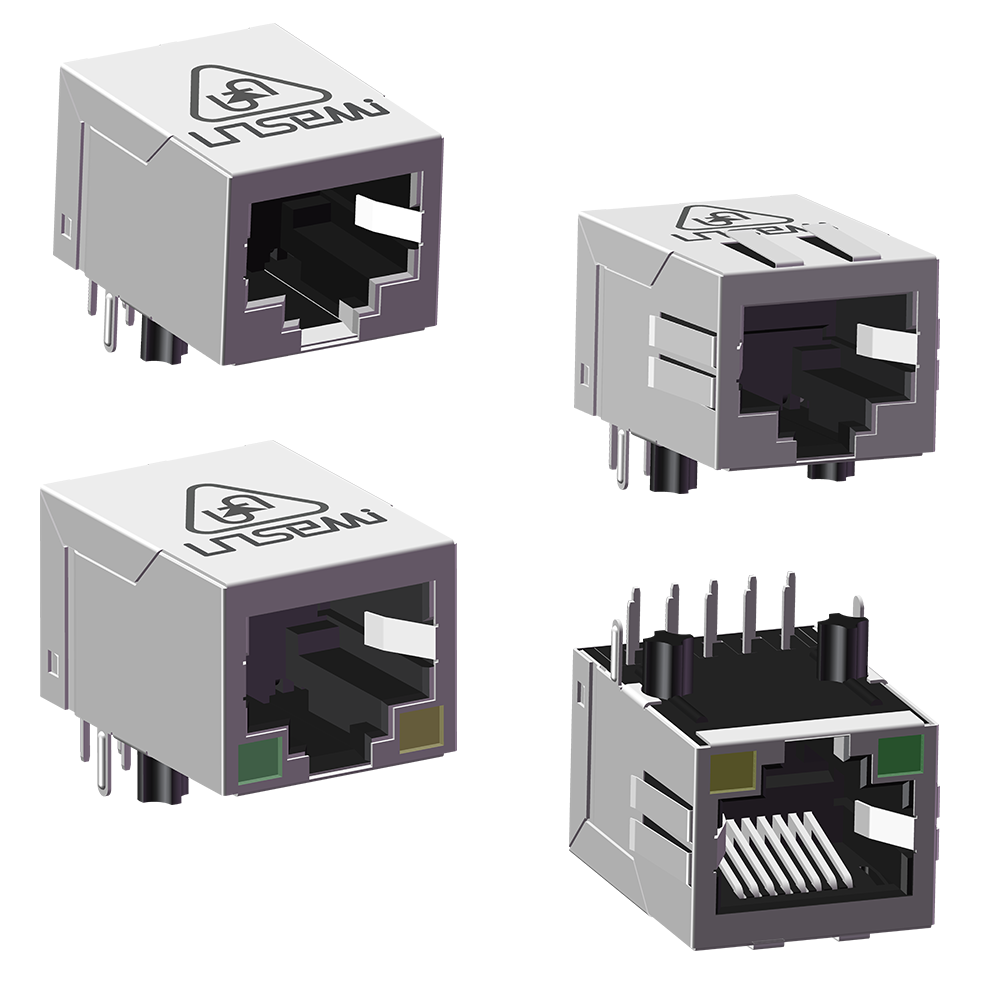

The RJ45 connector with surge protection UNSxxx is an integrated protection product family with built-in network transformer, which meets the requirements of network signal isolation, surge protection and ESD protection functions inside the RJ45 connector. This design not only effectively protects network equipment from damage such as lightning surges and electrostatic discharge, but also saves space on the PCB board and simplifies the design process for electronics engineers.

Here are the key features and benefits of the product:

1. Network transformer: RJ45 connector with surge protection has a built-in network transformer, which can realize the isolation of network signals and improve the stability and anti-interference ability of network equipment.

2. Comprehensive protection: In addition to the network transformer, the connector also has surge protection and ESD electrostatic protection functions, which fully protect the network equipment from various electrical damages.

3. Space-saving: All protection functions are integrated inside the RJ45 connector, without additional external protection components, which can save the space of the PCB board and make the overall design more compact and efficient.

4. Simplification of design: Engineers do not need to consider the design of additional protection circuits when designing network equipment, and only need to directly use RJ45 connectors with surge protection, which greatly simplifies the design process and improves the design efficiency.

5. Reliability improvement: Through the built-in multiple protection, the reliability of network equipment can be improved, the risk of equipment damage and communication interruption can be reduced, and the service life of equipment can be prolonged.

6. Easy application: The connectors of this product series are compatible with ordinary RJ45 connectors, simple to install, suitable for the protection needs of various network equipment, and are ideal for engineers when designing network equipment.

RJ45 connector | UN Semiconductor

For technical details and sales or technical support, please contact us.
