Power Protection Module(PPM)

（1）Steady state overvoltage protection（OVP）

（2）Overload and short circuit protection（OCP）

（3）Input polarity reverse protection

（4）Transient overvoltage surge protection

（5）Meet the most demanding 5A test of vehicle dumping load

（6）Both electronic fuse (eFuse) function

         Multifunctional power protection modules from UNSEMI are designed for industrial power applications. The module supports up to 3A operating current and 60V input voltage to meet the needs of the vast majority of power applications. In industrial electronic products, the stability and reliability of the power supply is the core to ensure product quality. However, due to the complex and changeable working environment of industrial electronic products, the power system often encounters external interference, such as input voltage misconnection, inrush current shock, abnormal voltage fluctuations, circuit overload and load short circuit. As the power source of electronic products, ensuring the safe, stable and reliable operation of the power supply is the top priority of R & D engineers. Often, designing these protection circuits and verifying their reliability takes a lot of development time. The multifunctional power protection module of UEN Semiconductor integrates these protection functions, simplifies the application circuit design, and provides a wealth of protection characteristics, effectively improves the input and output protection level of the power supply, and ensures the long-term stable operation of the power system, thereby extending the service life of the electronic equipment.

Product Advantage

（1）Support up to 60V input voltage and 3A operating current: suitable for a variety of power application scenarios to meet the needs of different devices.

（2）Steady state overvoltage protection function: can effectively monitor and limit the voltage, prevent the equipment from being damaged due to overvoltage, and ensure the stable operation of the equipment        within the safe voltage range.

（3）Transient overvoltage Surge protection: Responds quickly to voltage surges to protect equipment from lightning strikes or other transient voltage events.

（4）Overload and short circuit protection function: When the current exceeds the set value or short circuit occurs, the module will automatically cut off the power supply to prevent equipment damage and ensure the safety of users.

（5）Power input error protection function: It can prevent equipment damage caused by power connection error, and ensure the safety and convenience of users when wiring.

（6）Electronic fuse (eFuse) function: can automatically disconnect the circuit in the case of overload or short circuit, and automatically restore power supply after troubleshooting, improving the convenience of use.

（7）Ultra-fast response speed in the μs class.

（8）High trigger error accuracy: ±5%

（9）Provide parameter customization design.

Application Field

（1）Industrial Control Equipment

（2）Communication Equipment

（3）Military Aerospace

（4）Instrument and Meter

（5）Electric Energy

（6）Medical Equipment

（7）On-Board Electronic Products Throw Load Protection

Design Reference Application

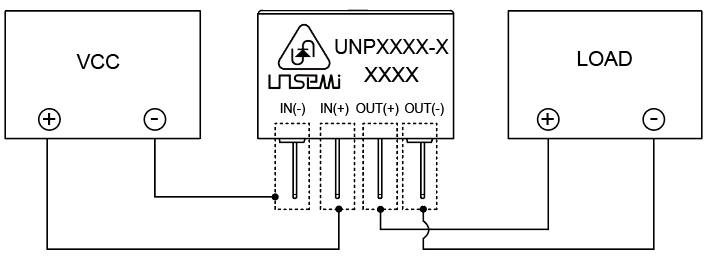

Figure 1. Design reference application diagram

Response to The Measured Waveform Diagram

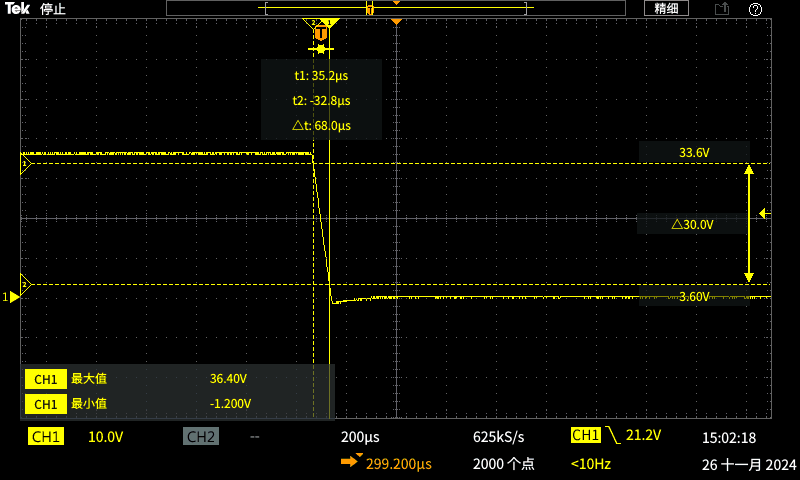

Figure 2. Waveform diagram of overvoltage protection

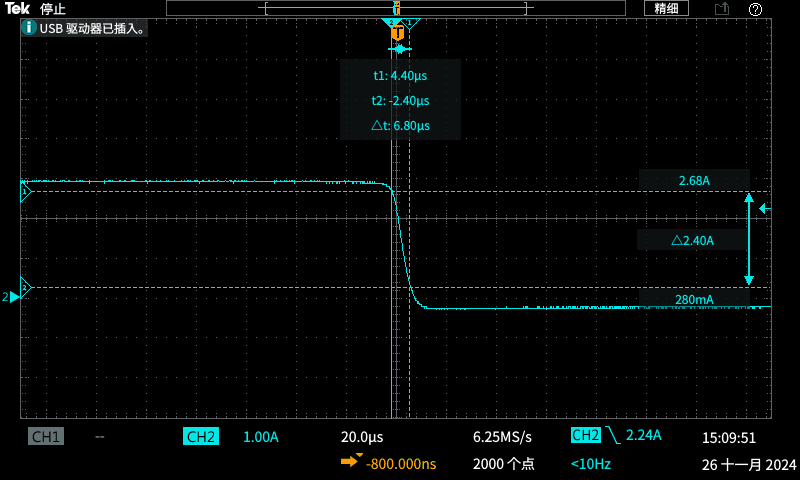

Figure 3. Waveform diagram of overload protection

Brief Summary

       Unlike traditional discrete circuit protection, our multifunctional power protection modules are the best way to ensure the safe operation of your equipment. It can effectively prevent the damage caused by power supply problems and ensure the stability and reliability of the equipment. Whether in an industrial environment or for home use, it provides you with a powerful power protection solution.

        UN Semiconductor has been committed to the research and development of EMC protection devices and technological innovation, to provide customers with better and better devices and protection solutions is our driving force. Our products have been widely used in many fields such as consumer electronics, communications, automotive electronics, industrial control and so on.

                                                                                                                                                                                                                                        UN semiconductor

                                                                                                                                                                                                                    Functional Module Development Division
