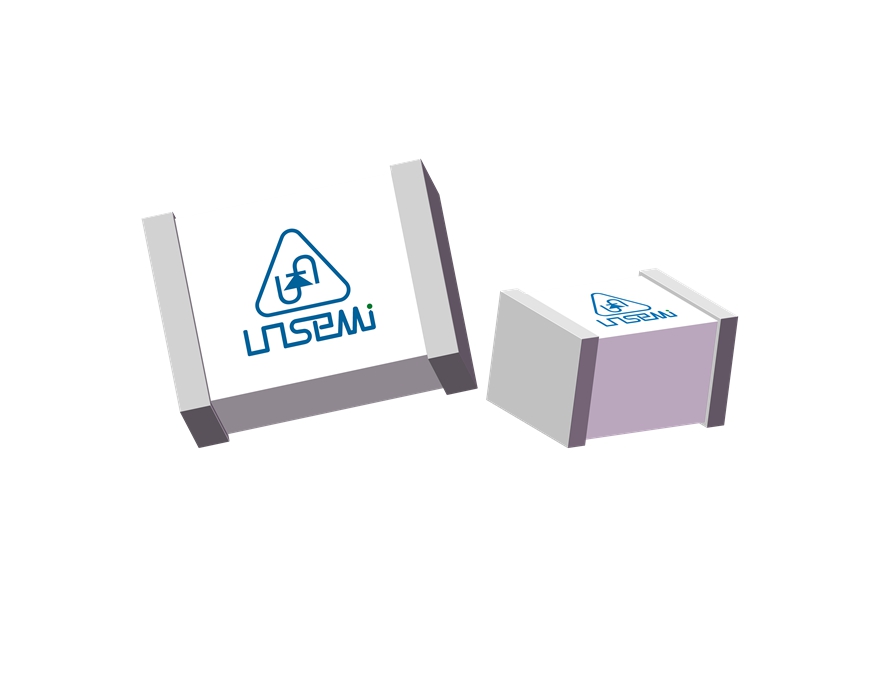

Package | 1206 |
Number of poles | 2 |
Spark-over Voltage @100V/S DC(V) | 200±30% |
Impulse Spark-over Voltage @100V/µS | 600 |
Impulse Spark-over Voltage @1KV/µS | 750 |
Minmum Insulation Resistance (MΩ) | 1000 |
Arc Voltage @1A (V) | ~15 |
Surge Current 8/20µs (A) | 500 |
Cj @1MHz (pF) | 0.5 |
UN1206.pdf
