UN0405N2R4-PD56

Datasheet

UN0405N2R4-PD56.pdf

Product Details

Parameter
Packaging | Dimensions
Characteristic
Illustrate

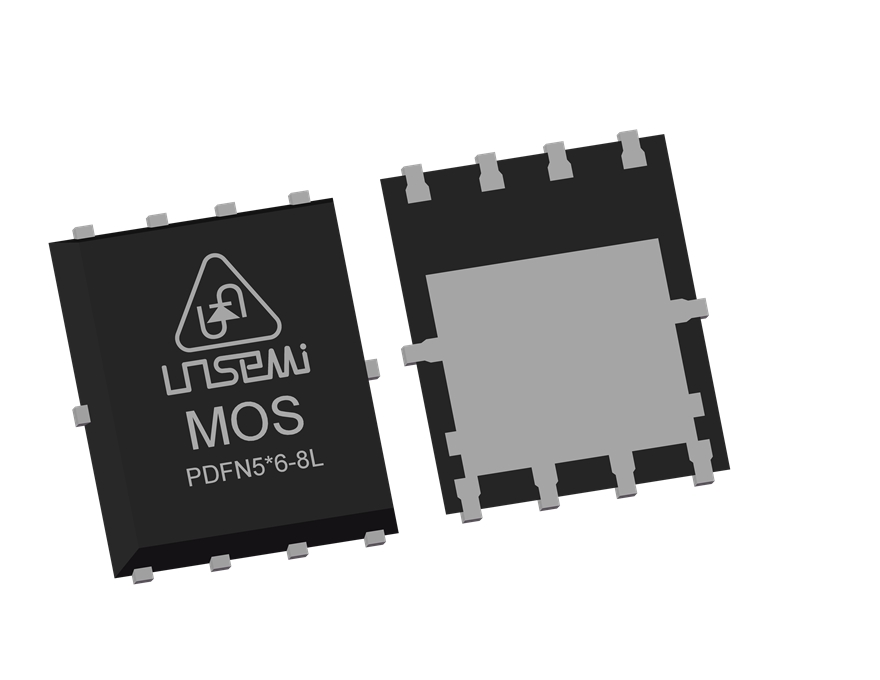

Package	PDFN5*6-8L
Type	NMOS
VDS (V)	40
VGS (V)	±20
VTH (MIN) (V)	1.0
VTH (MAX) (V)	2.5
ID @25°C (A)	59
RDS(ON) @VGS=10V Typ(mΩ)	2.4
RDS(ON) @VGS=10V Max(mΩ)	4.0
RDS(ON) @VGS=4.5V Typ.(mΩ)	4.0
RDS(ON) @VGS=4.5V Max(mΩ)	5.2
ESD	NO
AEC-Q101	NO
